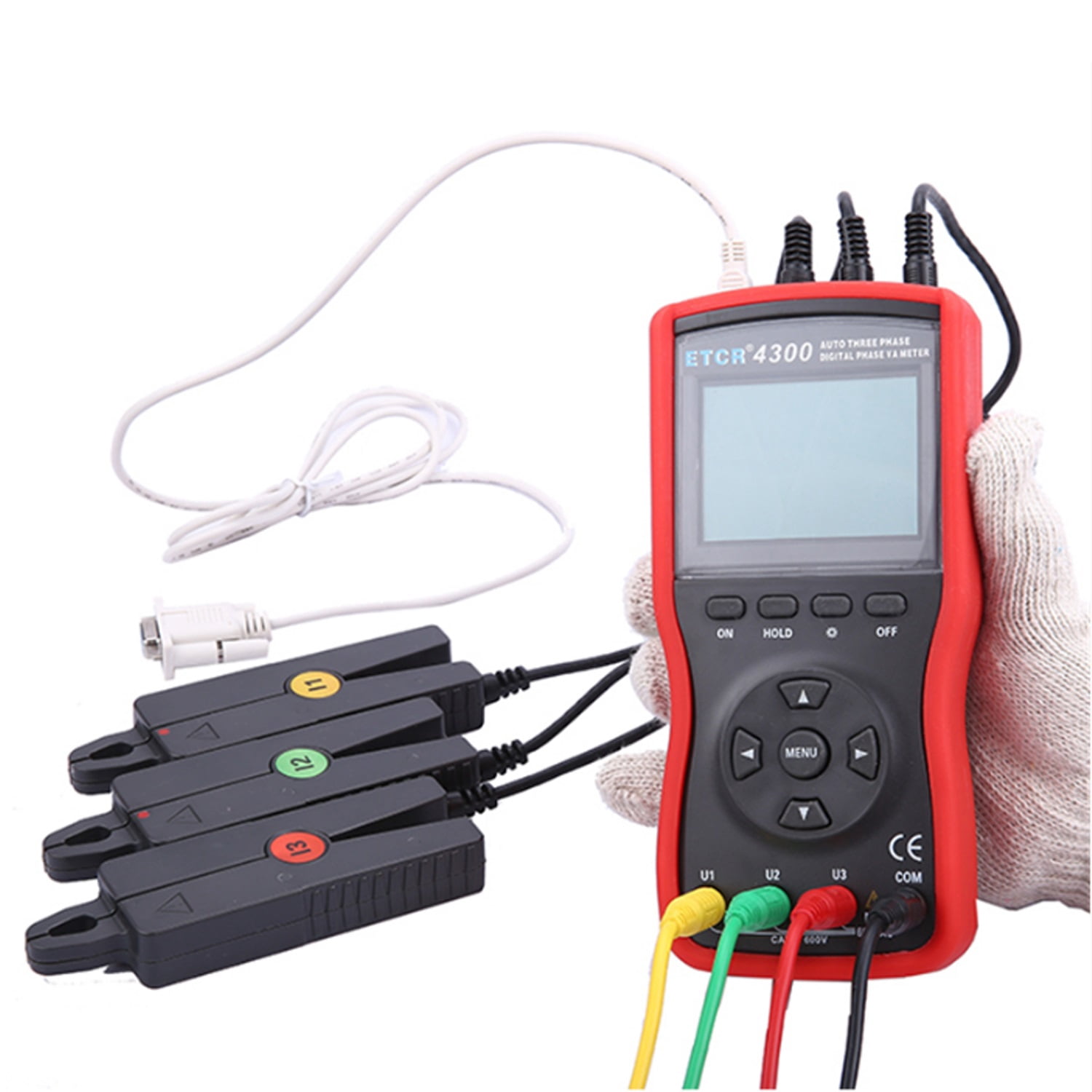

Small Tip Current Clamp Three Phase Meter Digital Volt-ampere Meter AC Voltage Current Tester Detector ETCR4300

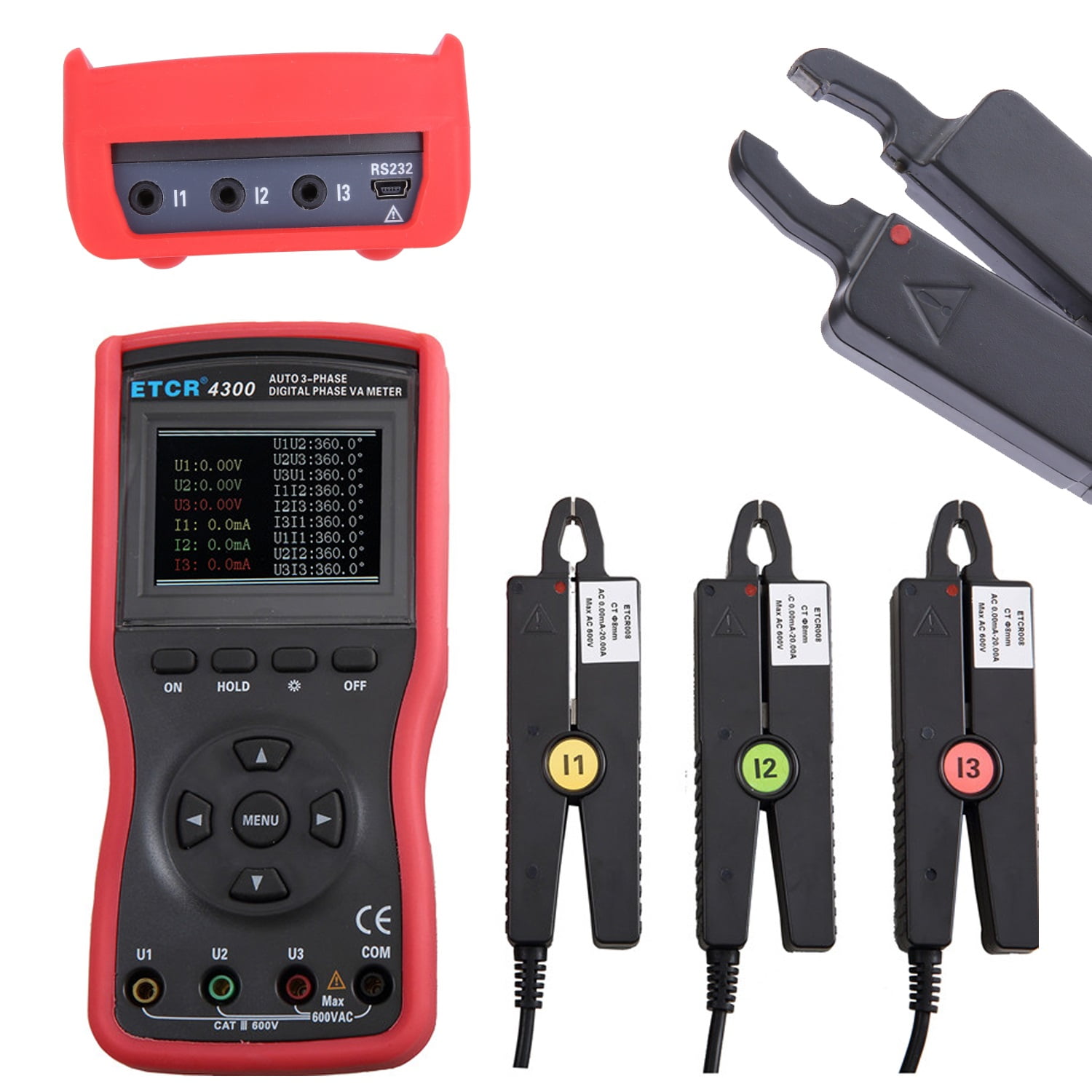

<p>Intelligent design, reduce the complexity of the operation, reduce the possibility of misoperation, with high accuracy, high stability, low power consumption, easy to use.</p><p>The tip of a small jaw shape is suitable for measuring the cable in crowded places.</p><p>The test line with power cable, rod and holder have insulation protection.</p><p>The use of large LCD display, white screen backlight, display at a glance. High precision, high stability, low power consumption, easy to use.</p><p>Equipped with USB-RS232 interface, can store 500 sets of data, through the system software to upload the stored data to the computer, easy to read, save, report, print historical data, etc..</p>

• Power DC9V alkaline batteries(1.5V AA×6)
• Consumption About 80mA at most with enabled backlight, battery working continuously for about 10 hours
• About 5mA with disabled backlight, battery working continuously for about 16 hours
• Display Mode LCD display, 240dots×160dots
• Meter Size Length, Width, Height 196mm×92mm×54mm
• Clamp Size ×
• Measurement Range
• (automatic shift) AC Voltage0.00 V-600V (automatic shift)
• AC Current 0.0mA-20.0A (automatic shift)
• Phase 0-360°
• Frequency 45.00Hz-65.00Hz
• Active Power 0.0W-12kW
• Reactive Power 0.0W-12kVAR
• Apparent Power 0.0W-2kVA
• Power Factor -1-+1
• Current Vector Sum 0mA-60.0A
• Resolution Voltage AC 0.01V
• Current AC 0.1mA
• Phase 0.1°
• Frequency 0.01Hz
• Active Power 0.1W
• Reactive Power 0.1VAR
• Apparent Power 0.1VA
• Power Factor 0.001
• Current Vector Sum 1mA
• Phase Sequence Positive Phase Sequence U1 U2 U3 or I1 I2 I3 cursors blink in order from left to right
• Negative Phase Sequence U1 U2 U3 or I1 I2 I3 cursors blink in order from right to left
• Sample Rate About 2 times/second
• Data Hold Press HOLD key to keep data, "DH" symbol appears
• Data Storage 500 sets
• RS232 Interface USB-RS232 interface, download data to computer for analysis and management
• Automatic Shutdown Automatic shutdown about 15 minutes later after launching to reduce battery consumption
• Backlighting Suitable for dark place and nightly use
• Voltage Detection  Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 7.2V.
• Weight Main Unit about 550g, acuminate current clamp about 170g×3, round current clamp about 185g×3, test line about 250g
• Test Line Length 1.5m
• Current Clamp Length 2m×φ5mm
• Working Temperature and Humidity -10c-40c below 80%Rh
• Storage Temperature and Humidity -10c -60c below 70%Rh
• Input Impedence Testing voltage the input impendence is 2MΩ
• Withstand Voltage Withstand 1000V/50Hz sine wave AC voltage for 1 minute between the meter lines and shell; Withstand 500V/50Hz AC voltage sine wave for 1 minute between the two voltage inputs
• Insulation ≥100MΩ between meter lines and shell or between the two voltage inputs
• Structure Double insulation, with insulation vibration-proof sheath
• Safety Specifications IEC61010-1 CAT iii 600V, IEC61010-031, IEC61326, 2 class of pollution

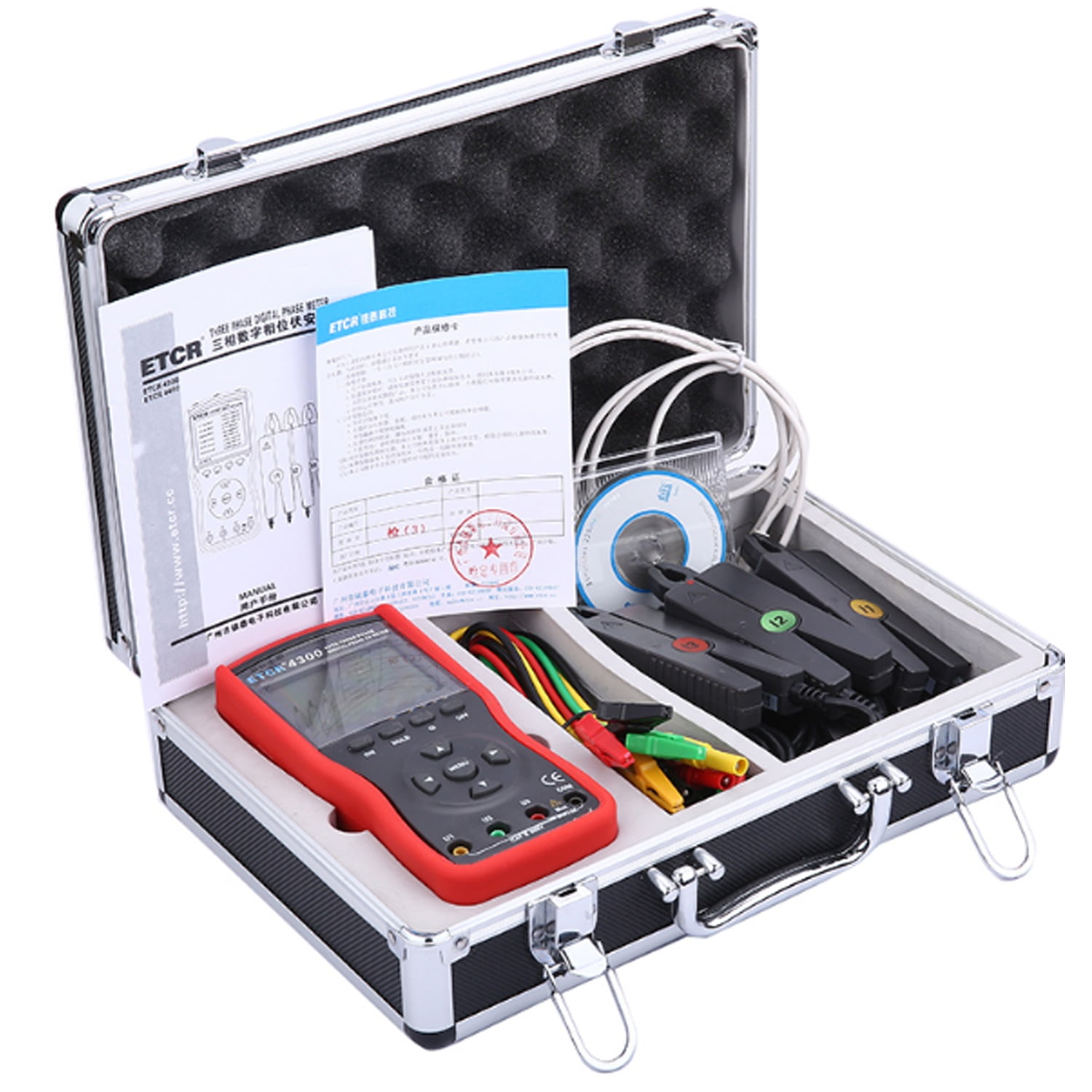

• Accessories Main Unit: 1 pc; Meter Box: 1 piece; Current Clamp: 3 pcs; Test Line: 4 pcs(yellow, green, red, black); RS232 Data Line: 1 pc; Disk: 1 pc; User Manual: 1 pc ; Guarantee Card: 1 pc; Certification: 1 pc.
