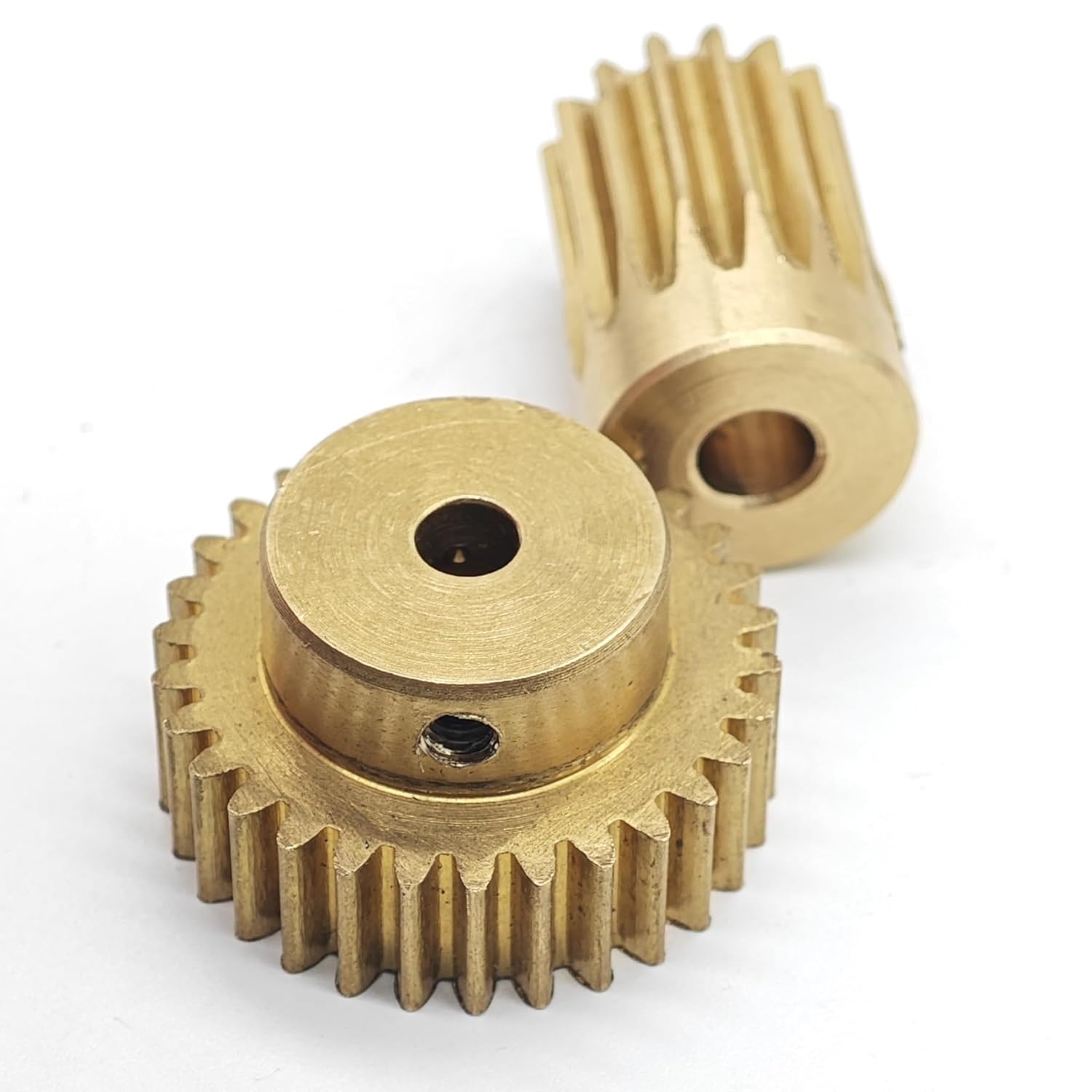

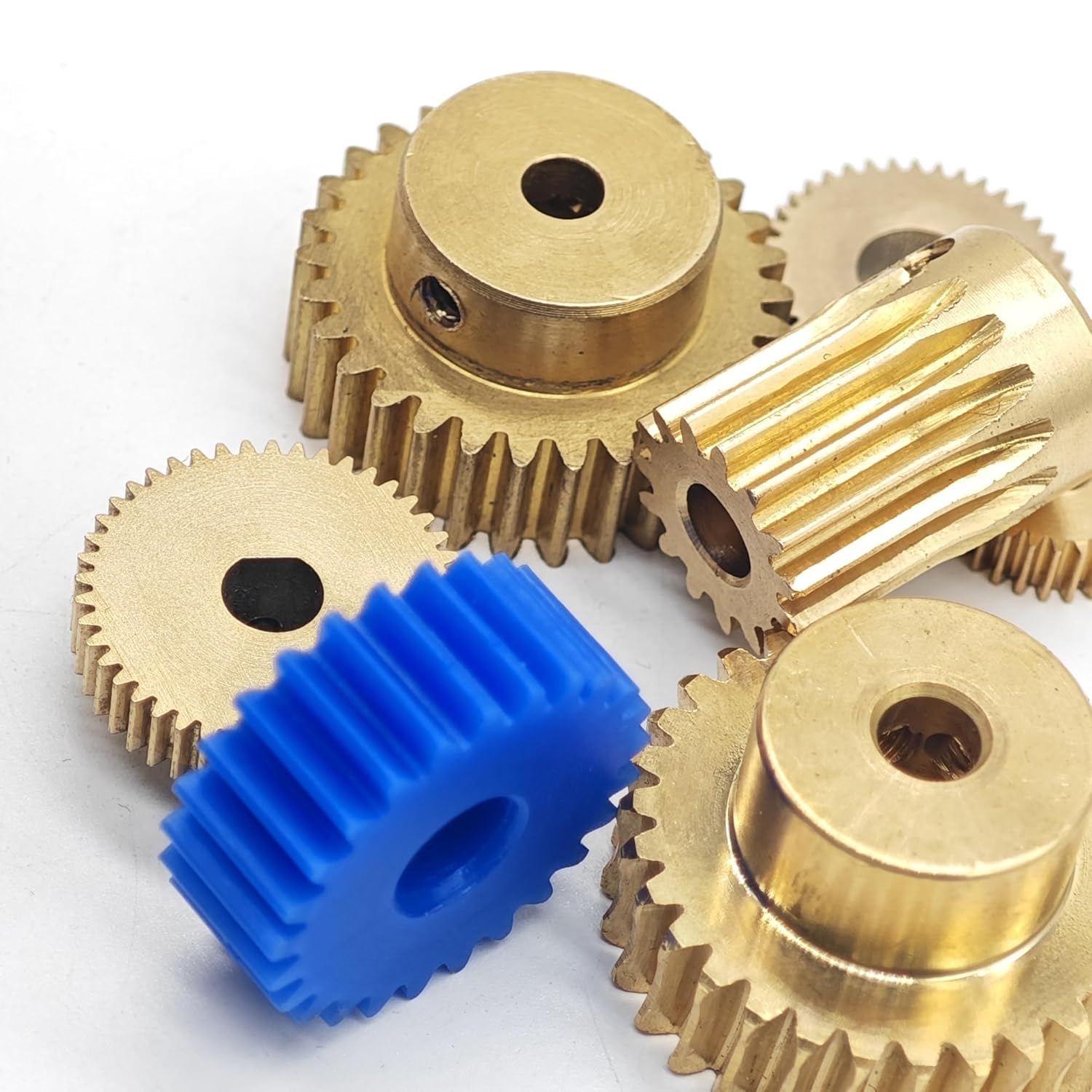

0.6 Module 81 Teeth Copper Spur Gear 0.6M 81T Step Cylindrical Gear Straight Teeth Transmission Pinion Mechanical(5mm bore)
Product details
| Management number | 220411759 | Release Date | 2026/05/03 | List Price | US$12.71 | Model Number | 220411759 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Material: Brass, Model: 0.6 module 81 teeth, pressure angle 20°Teeth Pitch: 1.88mm, Teeth depth: 1.35mm, Teeth thickness: 5mmTeeth diameter: 49.8mm, pitch diameter: 48.6mmStep diameter: 15mm (Note: the diameter of the step is not fixed, it varies according to the selection of the bore) Optional Hole: 3mm, 3.17mm, 4mm, 5mm 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm
- Model: 0.6 module 81 teeth
- Step diameter: 15mm
- Screw: M3 Screw
- Brass Construction: Crafted from premium brass, our pinion gears boast exceptional wear resistance, superior strength, and remarkable hardness
- Easy Installation: Designed with a uniform diameter, our pinion gears are incredibly easy to install. The surface of the gear teeth facilitates straightforward assembly
| Brand Name | ELILANEY |
|---|---|
| Part Number | NRBAHRTCT-5MMBORE |
| Manufacturer | ELILANEY |
